Beschrijving
Netwerk
Ethernet LAN, data-overdrachtsnelheden
100, 1000, 2500, 5000, 10000 Mbit/s
Netwerk
Multi-WAN Load Balancing
Shadow Mode (VRRP) High Availability
LACP Port Aggregation
Dynamic Routing
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
Policy-based WAN and VPN Routing
Customizable DHCP Server
IPv6 ISP Support
IGMP Proxy
All Traffic Flows
Shadow Mode (VRRP) High Availability
LACP Port Aggregation
Dynamic Routing
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
Policy-based WAN and VPN Routing
Customizable DHCP Server
IPv6 ISP Support
IGMP Proxy
All Traffic Flows
Design
Kleur van het product
Aluminium
Type apparaat
Hyperscale-class Cloud Gateway
Display
1,3" touchscreen
Materiaal behuizing
Aluminium CNC, SGCC-staal
Rack hoogte
1U
Kenmerken
Aantal gebruikers
7500+ gebruiker(s)
Type processor
Octa-core ARM® v9 at 2.1 GHz
Intern geheugen
16 GB
Poorten & interfaces
3.5" HDD bay
2x 3.5" NVR HDD bays
Aantal Ethernet LAN (RJ-45)-poorten
10
Aantal WAN-poorten
Maximaal 8
SFP+ snelheid
2x 10 Gbps
2x 25 Gbps
2x 25 Gbps
Aantal SFP+ poorten
4
Ethernet LAN (RJ-45) snelheid
2x (1G/100M/10M)
8x (10G/5G/2.5G/1G/100M)
8x (10G/5G/2.5G/1G/100M)
Beheerfuncties
UniFi Application Suite
Network, Protect, Access, Talk, Connect
Beheerde UniFi-apparaten
750+
Beveiliging
Beveiliging
Stateful Firewall
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures 55,000+ with CyberSecure
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures 55,000+ with CyberSecure
Capaciteit
2K-camera’s
60 Stuks
4K-camera’s
40 Stuks
HD-camera’s
100 Stuks
Geheugen
Onboard opslag
128 GB SSD
VPN en SD-WAN
Site-to-site VPN
Site Magic, IPsec, OpenVPN
VPN Server
Identity Endpoint One-Click VPN
Teleport Zero-Configuration VPN
WireGuard
OpenVPN
L2TP
Teleport Zero-Configuration VPN
WireGuard
OpenVPN
L2TP
VPN Client
OpenVPN, WireGuard

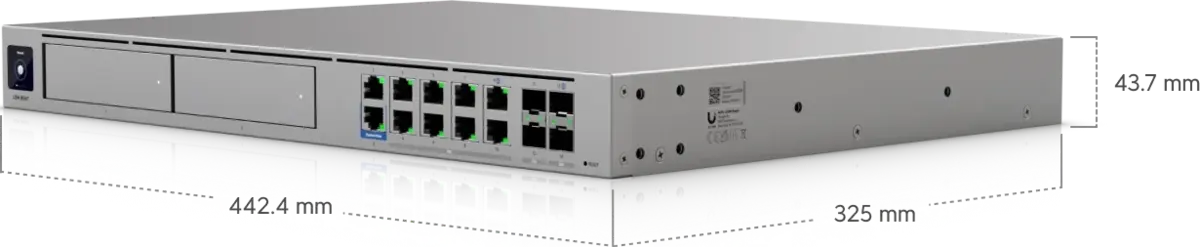

Gewicht en omvang
Breedte
442,4 mm
Diepte
325 mm
Hoogte
43,7 mm
Gewicht
5,5 kg
Energie
Vermogensverbruik (max)
100 W
